Sectional doors, track and clearances
Overhead Garage Doors in Dallas-Fort Worth
Short answer
An overhead garage door is a sectional door: four to six horizontal panels hinged together that roll up on tracks and park horizontally under the garage ceiling. Doors are quoted after a field measure, because size, layer count, insulation and hardware move the number significantly. Installations are completed in a single day.
The Door Is Only Half the Job. The Track Decides What Your Garage Can Do.
Overview

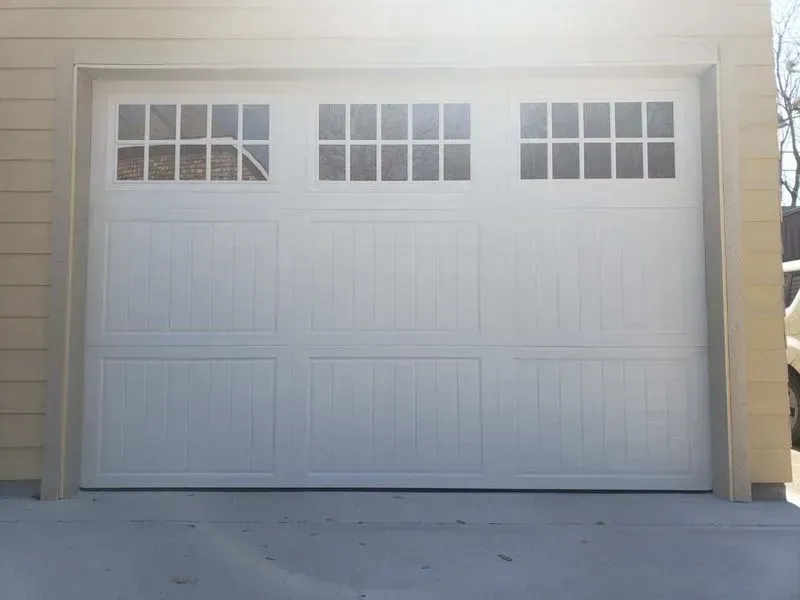

An overhead garage door is a sectional door: four to six horizontal panels hinged together that roll up on tracks and park horizontally under the garage ceiling. It is the standard residential door in Dallas-Fort Worth and in nearly all of North America, and when someone says garage door without qualifying it, this is what they mean.
What separates a good overhead installation from a mediocre one is rarely the door face. It is the track configuration and whether the installer measured the clearances instead of assuming them. The right track can free your ceiling for a car lift or overhead storage. The wrong one can make a door impossible to fit under existing ductwork.
Professional Garage Concepts has measured, ordered and installed sectional overhead doors across DFW since 2001, with 532 Google reviews at 4.8 stars and IDA certified technicians. Call (817) 381-6173 and we will measure your opening before recommending anything.
How a Sectional Overhead Door Actually Works
The door is made of hinged sections with rollers on each end riding in a vertical track beside the opening. That vertical track curves into a horizontal track that runs back under the ceiling. As the door lifts, each section pivots at the hinge and transitions from vertical to horizontal at the curve.

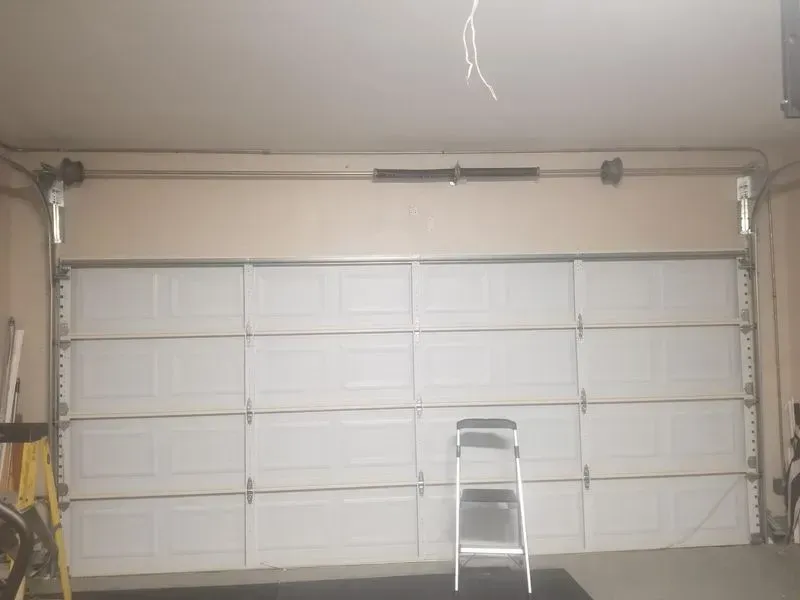

The lifting is not done by the opener. It is done by springs. A torsion spring mounted on a shaft above the opening winds up counterweight force, and cables running from the shaft drums to the bottom brackets transfer that force to the door. On a correctly balanced door the springs carry essentially all of the weight, which is why you can lift a 350-pound door by hand when it is disconnected. The opener only supplies the small push needed to overcome friction and start motion.
That is why balance is the core of every service call. An out-of-balance door makes the opener do work it was never designed for, and that kills opener gears, wears rollers and cables, and eventually breaks the spring early. Every installation we finish includes a hand-balance test with the opener disconnected: the door should hold position at waist height without drifting up or down.
- Hinged sections with end rollers riding vertical and horizontal track
- Torsion springs on a shaft above the opening carry the door weight
- Cables and drums transfer spring force to the bottom brackets
- The opener supplies motion, not lifting force
- A balanced door holds at waist height with the opener disconnected
Track Types: Standard, High Lift, Low Headroom and Vertical
Four track configurations cover residential and light commercial work, and the one you can use is decided by the space above and beside the opening.
Standard lift is the default. The vertical track curves into horizontal track a short distance above the opening, and the door parks flat against the ceiling. It needs roughly 12 inches of headroom for a torsion system.
Low headroom track exists for garages that do not have that. It uses a double horizontal track, one for the top rollers and one for the rest, and drops the headroom requirement to about 4.5 inches. This is what saves a garage with a low ceiling, a header beam, or ductwork running right above the opening. It is a fully standard, reliable configuration, not a compromise.
High lift raises the door straight up further before it turns horizontal. The door parks higher on the wall and further from your head, which is the point. Vertical lift takes that to its conclusion: the door travels straight up with no horizontal run at all. Vertical lift is a commercial configuration used on tall openings with plenty of wall above them.
- Standard lift: about 12 inches of headroom, door parks under the ceiling
- Low headroom: about 4.5 inches with double horizontal track
- High lift: door rises further up the wall before turning horizontal
- Vertical lift: straight up, no horizontal track, tall commercial openings
- Track type also affects opener choice, since high lift usually pairs with a wall-mount jackshaft
Headroom, Sideroom and Backroom: The Three Measurements
Three clearances determine what fits, and we measure all three before quoting anything. Headroom is the distance from the top of the opening to the lowest obstruction on the ceiling, whether that is the deck, a beam, a light or a duct. Sideroom is the flat wall space beside each jamb, and a torsion system typically needs about 3.75 to 6 inches per side for the vertical track and bracket. Backroom is the depth from the opening to the rear wall, and for standard lift it needs to be roughly the door height plus 18 inches so the door has somewhere to go.
DFW-specific complication: the expansive Blackland Prairie clay under most of this metroplex moves with moisture, which racks slabs and framing over time. An opening that was square when the house was built can be out by half an inch or more a decade later. That changes how the track has to be shimmed and how the bottom seal contacts the slab. We check for it during measurement, and it gets corrected during installation rather than discovered afterward.
If a contractor quotes an overhead door without visiting and measuring, the number is a guess.
- Headroom: opening top to the lowest ceiling obstruction
- Sideroom: roughly 3.75 to 6 inches of flat wall per jamb
- Backroom: about door height plus 18 inches for standard lift
- Obstructions to flag: ductwork, beams, lights, pipes and storage racks
- Out-of-square openings from clay soil movement are common and correctable
When High Lift Is Worth Paying For
High lift track costs more than standard because it uses longer vertical track, a repositioned torsion shaft, longer cables and different drums. Three situations justify it clearly.
A car lift is the strongest case. A two-post or four-post lift needs the ceiling above the vehicle bay clear, and a standard-lift door parked flat under that ceiling is exactly in the way. High lift moves the door up the wall and out of the lift's travel. This is the single most common reason DFW homeowners ask for it.
Overhead storage is the second. Ceiling racks are the cheapest storage a garage can have, and standard lift track eats the most useful part of the ceiling, the strip nearest the door. High lift gives that back.
The third is a tall garage where the door simply looks and works better higher, often paired with a taller 8-foot door on a truck garage. In all three cases high lift usually pairs with a wall-mount jackshaft opener, which mounts beside the torsion shaft and clears the ceiling entirely. Doing both at once is far cheaper than converting later.
- Car lifts: high lift keeps the door out of the lift's travel
- Overhead storage racks: reclaims the ceiling strip nearest the door
- Tall garages and 8-foot doors on truck bays
- Pairs naturally with a wall-mount jackshaft opener
- Cheaper to specify at installation than to convert later
Straight pricing
Overhead Garage Door Pricing in DFW
These are typical DFW installed ranges rather than a quote, and low headroom, high lift and vertical lift hardware is priced after a field measure because it changes with your actual clearances.
Single sectional door, standard lift
$2,000 to $10,000+installed
Standard 8x7 and 9x7 openings with about 12 inches of headroom
- New vertical and horizontal track shimmed to the opening
- New rollers, hinges and struts
- Torsion springs sized to the finished door weight
- Old door and hardware hauled away
Double sectional door, standard lift
$3,500 to $20,000+installed
16x7 and 18x7 openings, where the typical DFW job lands near $4,500
- Full track and hardware replacement
- Insulation upgrades at $500 to $1,000 for polystyrene, $1,000+ for polyurethane
- Out-of-square opening corrected during installation
- Hand-balance test before we sign off
Opener work with the door
$100 to $350installed
Reconnecting a good opener or replacing a worn one at the same visit
- $100 to $300 to connect an existing opener to a new door
- $150 to $350 for a new opener installed
- Travel and force reset to the new door weight
- Photo-eye alignment and reversal test
Answers
Frequently asked questions
Still stuck? Call (817) 381-6173 and talk to someone who does this every day.
What is an overhead garage door?
An overhead garage door is a sectional door made of four to six hinged horizontal panels that roll up on tracks and park horizontally under the garage ceiling. It is the standard residential door across Dallas-Fort Worth. Torsion springs above the opening carry the weight, and the opener supplies motion rather than lifting force.
How much headroom does a garage door need?
A standard lift torsion system needs roughly 12 inches of headroom above the opening, while low headroom track using a double horizontal track drops that requirement to about 4.5 inches, which is what makes a door fit under ductwork, a low ceiling or a header beam. We measure before quoting rather than assuming.
What is high lift garage door track?
High lift track raises the door further straight up the wall before it turns horizontal, so it parks higher and further back from the ceiling above your vehicle. It is used for car lifts, overhead storage racks and tall garages. High lift usually pairs with a wall-mount jackshaft opener that clears the ceiling entirely.
How much sideroom and backroom does an overhead door need?
A torsion system typically needs about 3.75 to 6 inches of flat wall on each side of the opening for the vertical track and brackets, plus backroom of roughly the door height plus 18 inches for standard lift. Obstructions like pipes, electrical panels and storage racks change those requirements.
Why does my overhead door bind in one corner?
Binding in one corner usually means the opening has moved rather than the door failing, because the expansive clay soil under most of Dallas-Fort Worth shifts slabs and racks framing over time, pulling an opening out of square. The fix is re-shimming and realigning the track to the opening's current geometry.
Can I convert my existing door to high lift?
Usually yes, if you have enough clear wall height above the opening, though conversion means new longer vertical track, a repositioned torsion shaft, new drums, longer cables and often a wall-mount opener. It costs meaningfully more than specifying high lift on a new door, so decide before installation day.
